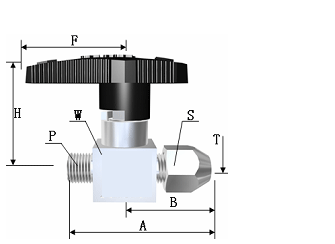

YCF1202 Q2(8)1SA-16T/P型终端卡箍式球阀

|
T配管尺寸 |
P |
基本订货号 |
公称通径 |
公称压力 |
A |
B |
F |
对边尺寸 |
H |
|
in |
mm |
DN |
PN |
S |
W |
|
1/4 |
6 |
M10×1 |
YCF120201 |
4.0 |
1.6MPa |
49 |
29 |
32 |
12 |
16 |
36 |
|
ZG1/8" |
YCF120202 |
49 |
29 |
32 |
12 |
16 |
36 |
|
ZG1/4" |
YCF120203 |
51 |
29 |
32 |
12 |
16 |
36 |
|
G1/4" |
YCF120204 |
51 |
29 |
32 |
12 |
16 |
36 |
|
5/16 |
8 |
M10×1 |
YCF120205 |
6.0 |
51 |
31 |
38 |
14 |
20 |
48 |
|
ZG1/8" |
YCF120206 |
51 |
31 |
38 |
14 |
20 |
48 |
|
ZG1/4" |
YCF120207 |
53 |
31 |
38 |
14 |
20 |
48 |
|
G1/4" |
YCF120208 |
53 |
31 |
38 |
14 |
20 |
48 |
|
3/8 |
10 |
M10×1 |
YCF120209 |
8.0 |
51 |
39 |
44 |
17 |
25 |
54 |
|
ZG1/8" |
YCF120210 |
51 |
39 |
44 |
17 |
25 |
54 |
|
ZG1/4" |
YCF120211 |
53 |
39 |
44 |
17 |
25 |
54 |
|
G1/4" |
YCF120212 |
53 |
39 |
44 |
17 |
25 |
54 |
|
